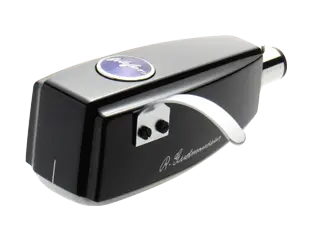

Ortofon SPU Meister Silver G MkII

Märke: Ortofon
Modell: SPU Meister Silver G MkII

Output voltage at 1000 Hz 5cm/sec     0,3 mV
Channel balance at 1 kHz     < 1 dB
Channel separation at 1 kHz     > 20 dB
Channel separation at 15 kHz     > 10 dB
Frequency range at -3 dB     20-25 kHz
Frequency response 20 - 20 kHz      +2 / -1 dB
Tracking ability at 315 Hz at recommended tracking force *)     >  70 μm
Compliance, dynamic, lateral     8 μm/mN
Stylus type     Nude elliptical
Stylus tip radius      r/R 8/18 μm
Equivalent stylus tip mass     0,45 mg
Tracking force range     3.0-5.0 g (30-50 mN)
Tracking force recommended     4.00 g (40 mN)
Tracking angle     20º
Internal impedance, DC resistance     3.1 Ohm
Recommended load impedance     > 10 Ohm
Coilwire material     Silver, 6-nines
Cartridge body material     Grinded wood
Cartridge colour     Silver/Black
Cartridge Weight     31.5 gram

2-års fabriksgaranti
Ny i originalkartong, med manual
