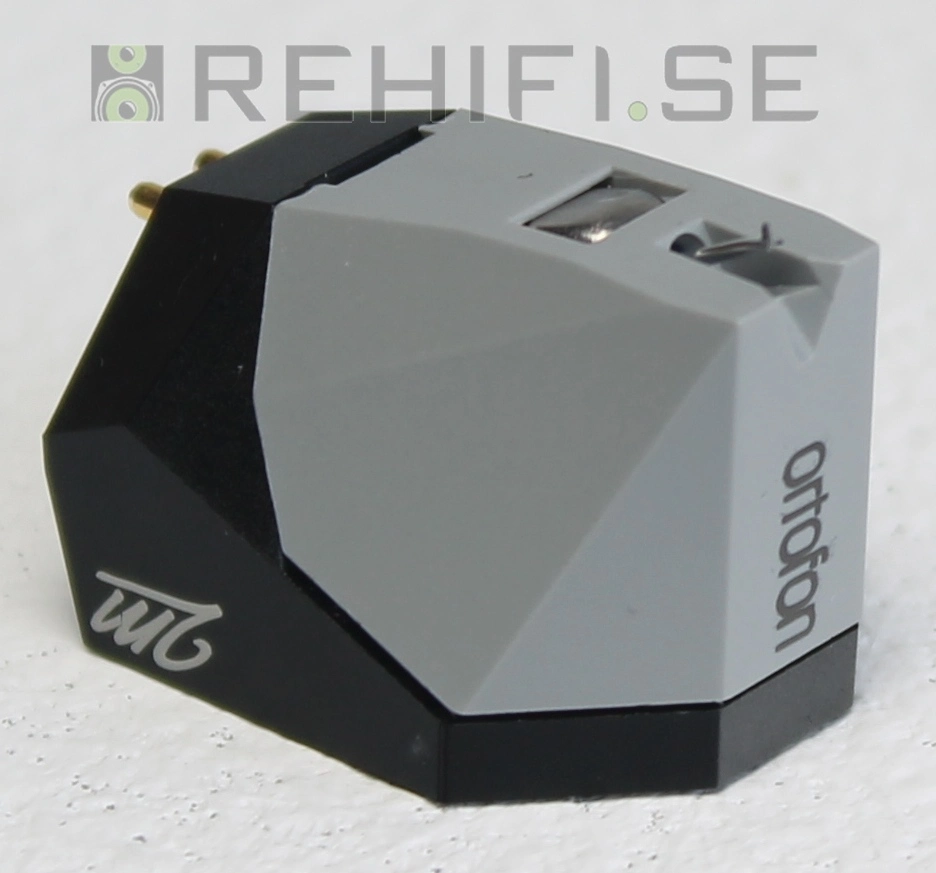

Ortofon 2M 78

Märke:  Ortofon
Model:  2M 78

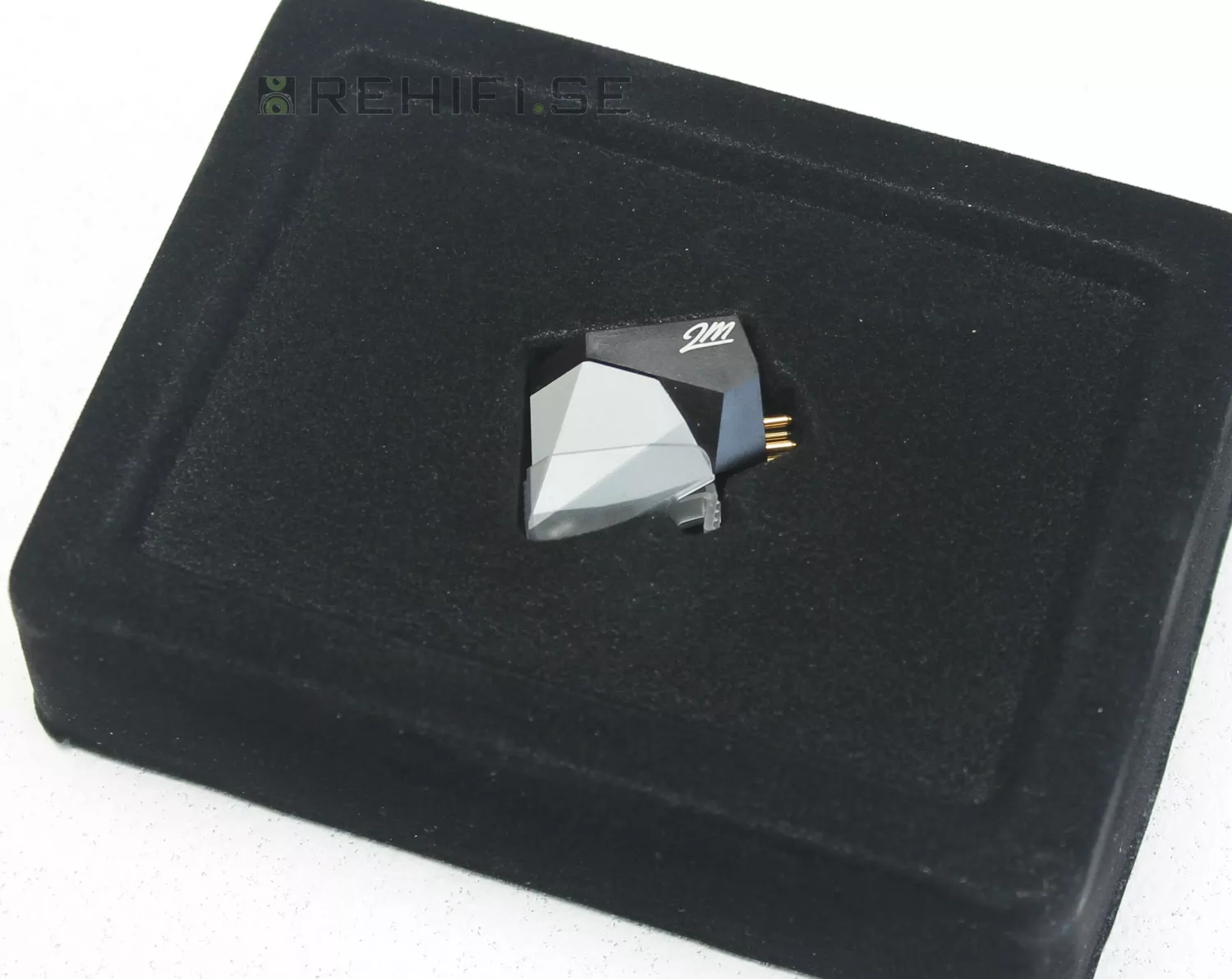

Information: Ny pickup för 78 varvsspelning, i originalkartong

Output voltage at 1000 Hz, 5cm/sec.: 4 mV
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Spherical
Stylus tip radius: R 65 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20º
Internal impedance, DC resistance: 700 Ohm
Internal inductance: 300 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Grey/Black
Cartridge weight without screws: 7,2 g
Replacement stylus unit: 2M 78

2-års fabriksgaranti
